제목 | LTC/GPI Connector <SPG9000> 2025-07-21 100
이름 | SPG   (IP:1.223.87.84)
첨부파일 | LTC,GPI Connecotr.JPG
링크주소 |

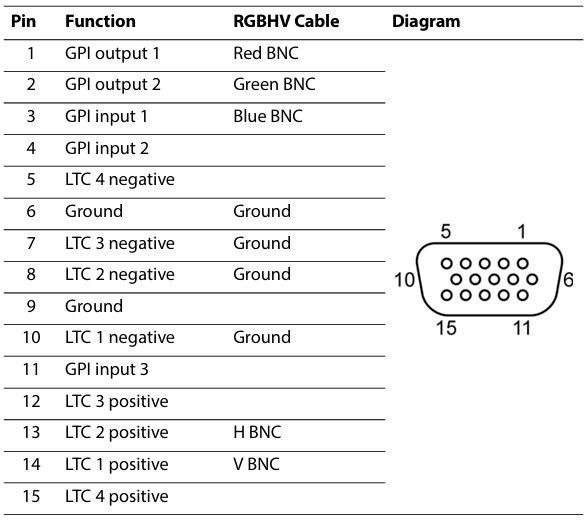

The LTC/GPI connector is a 15-pin, D-sub connector (DE-15 socket) that includes both Linear Time Code (LTC) input and outputs, and a subset (3 inputs and 2 outputs) of the General Purpose Interface.
