제목 | LTC Channels of ECO8000 2025-07-21 88
이름 | ECO   (IP:1.223.87.84)
첨부파일 | LTC-Connector-ECO8000.JPG
링크주소 | https://www.telestream.net/video/resources.htm

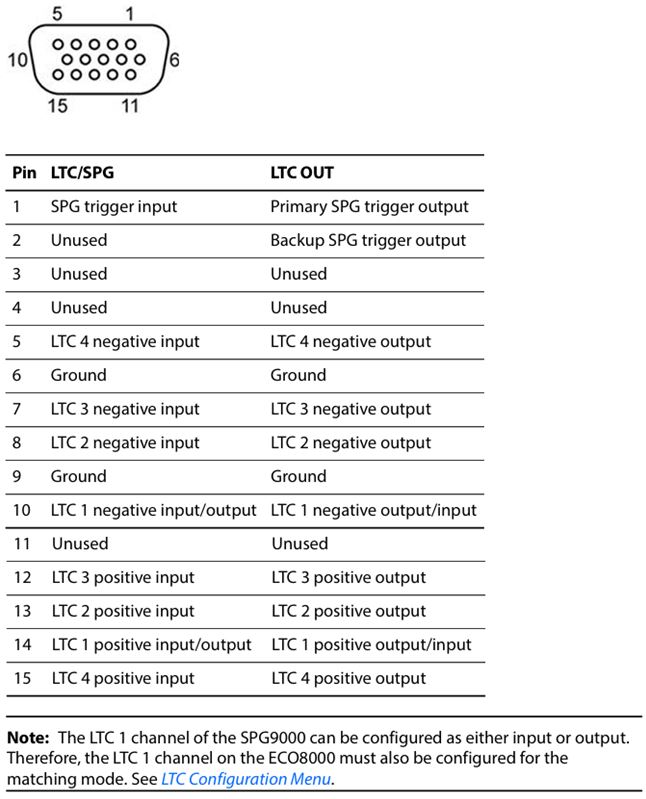

The ECO8000 has 4 channels for Linear Time Code (LTC) signals. These four channels share common 15-pin, D-sub connectors (DE-15 socket, also known as HD-15) along with a general-purpose trigger signal from the SPG9000. Standard VGA cables with DE-15 pin connectors can be used to connect each SPG9000 output to the ECO8000 inputs.
